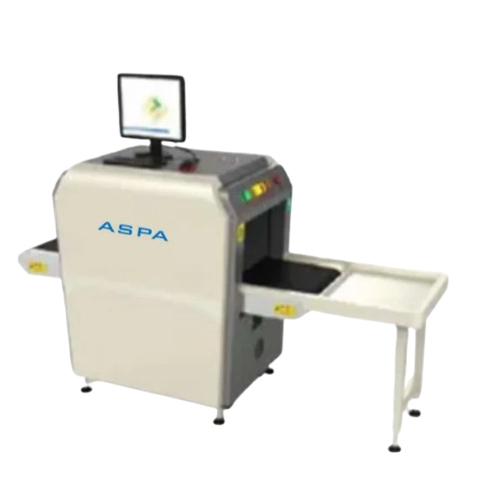

ASPA5030 X-Ray Baggage Scanner
765400 INR/Piece
Product Details:
- Material MS
- Warranty 1 Year
- Usage Safety
- Dimension (L*W*H) 2178*746*1160 Millimeter (mm)
- Alarm Yes
- Weight 260 Kilograms (kg)
- Frequency 50 Hertz (HZ)
- Click to View more
X
ASPA5030 X-Ray Baggage Scanner Price And Quantity
- 1 Piece
- 765400 INR/Piece
ASPA5030 X-Ray Baggage Scanner Product Specifications
- 2178*746*1160 Millimeter (mm)
- 1 Year
- Elcteric
- Safety
- MS
- 50 Hertz (HZ)
- No
- X Ray Baggage Scanner
- Yes
- 260 Kilograms (kg)
ASPA5030 X-Ray Baggage Scanner Trade Information
- 7 Days
Product Description
Specification
- Tunnel Size 503*295.5mm(widthheight) (20mm)
- Product Size 2178*746*1160mm(LWH)
- Wire Resolution TypicalAWG36
- Penetration Resolution TypicalAWG32
- Spatial Resolution Vertical:1.0mm, Horizontal:1.0mm
- Steel Penetration 30mm (2mm)
- X-Ray Dosage for Each Inspection 3.0Sv (uGy)
- Boundary Leakage 1.0Sv /h(uGy/h)
- S/N Ratio <60dB
- Conveyor Speed 0.2m/s
- Conveyor Max Load 100kg
- Power Consumption 0.5KW
- Leakage Current 5.0mA
- Film Safety Guarantees/ISO1600Film
- Weight 260kg, Atmospheric Pressure 86kPa-106kPa AC
- Operation Power 220V(10%-15%) 503Hz
- Operation System Linux, Configuration
- X-Ray Generator 80KV, oil cooling, from bottom to top
- Electric Roller DC , Operation Linux system, 2G memory, 8G storage
- Monitor 19" LED screen, resolution: 1920*1080 pixels
- Resolution 1920*1080 pixels
- Operation Console Single screen console
