ASPA-B700 Bollard SS MS 304 -700

ASPA-B700 Bollard SS MS 304 -700 Specification

Usage
Safety

Color
Silver

Frequency
50/60 Hertz (HZ)

Material
MS

Warranty
1 Year

Alarm
No

Function
Automatic

Size
Standard

Feature
Good Quality

ASPA-B700 Bollard SS MS 304 -700 Trade Information

Minimum Order Quantity
10 Pieces

Delivery Time
7 Days

About ASPA-B700 Bollard SS MS 304 -700

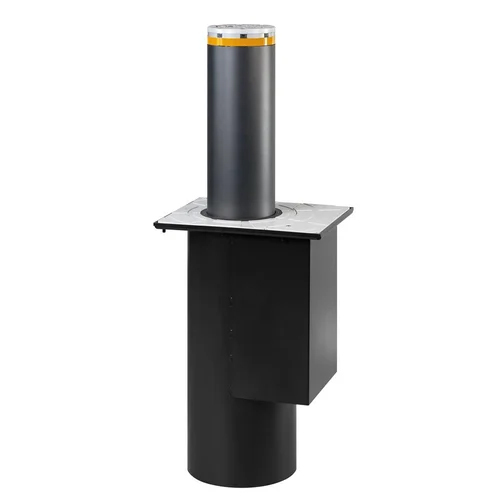

The ASPA-B700 Bollard SS MS 304-700 is a high-quality automatic bollard made of durable MS material. It is designed for safety purposes and comes in a sleek silver color. With a standard size, this bollard is perfect for various applications. It does not come with an alarm but is backed by a 1-year warranty for peace of mind.

Specification

Description Model -ASPA-700 SS 304
Power Supply Standard 380V 3-Phase 50/60 Hz2,2-5,5kW motor (depending on the number of bollards in
the set to be fed). Opt. 220V, 110V 1-Phase 50/60 Hz; or 24V DC
Control Pack 24V DC powered and PLC control unit is placed in power unit cabinet. Solenoids 24V DC
(Ops.12V DC / 220V AC)
Stroke Of Cylinder 700mm
Diameter of Cylinder Ø270mm, 324mm and 340mm
Thickness of cylinder 10mm wall thickness and eccentrically 65-90mm solid steel and composite 304 impact surface
Speed Standard Operation ~2.5 - 5 sec. (ascend/descend, depending on the number of bollards in
the set to be fed). Emergency raise up by optional hydraulic accumulator ~1,5 sec.
IP Rating IP 55 - Hydraulic Power Unit, IP 58 - Underground Structure, IP 67 - Electronics (optional),
protection with housing/box, IP 68 - Hydraulic Piston
Working Cycle 100% - 10millian
